Product introduction
paper size
（unfold）φ55-φ130mm
raw material
Greaseproof paper ,aluminum foil paper
specifications
15-120 g/m2
capacity
20～40 Times/min、15～30 papers/time
Power source
220V 50Hz
total power
2.5 KW
weight
500 KG
Dimensions ( L x W x H )
1600×1140×1400 mm
Supporting air
Pressure of work 0.6MPa ，Work volume 0.3m3/min

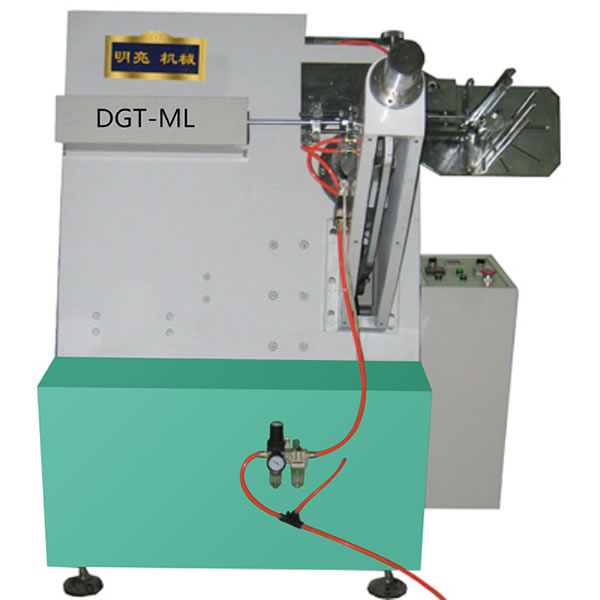

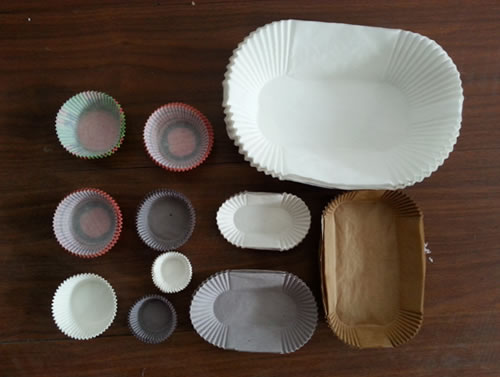

DGT-ML uses mechnical chuck with pneumatic to chuck,put and seperate papers automatically,mould stamping punch forming, ejection and other processes.It can produce various of cake trays by changing mouldi.
This device has following advantages: frequency ontrol of mechanical transmission,heating temperature automatic controlling, simple operation, high efficiency, stable performance.
Main technical parameter
