Product Description

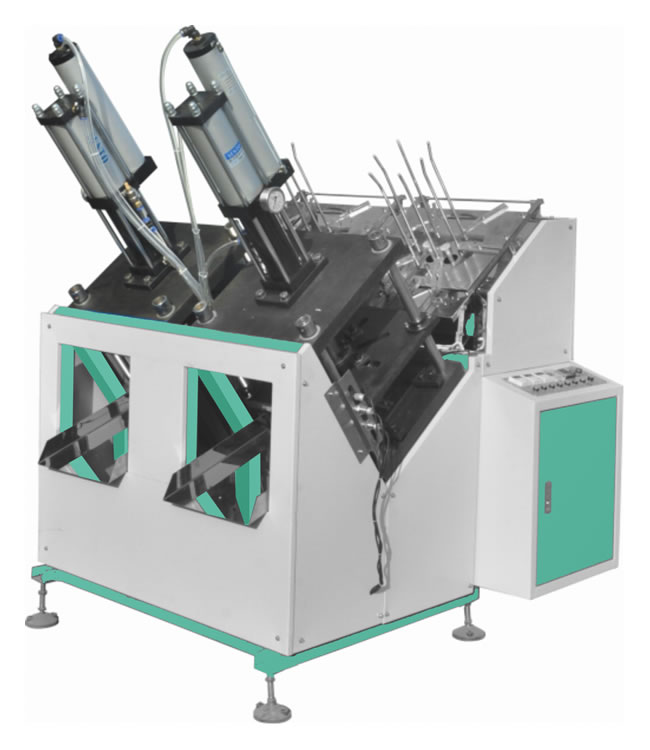

ML400 Full Automatic Medium-Speed Paper Plate Forming Machine is developed and designed according to market demands. ZDJ-ML400 reassembles the principle of combination of pneumatic and mechanical. Compared with the traditional automatic paper plate machine, ML400 has higher dish egecting rate ,and is easier to operate and maintain.
ML400 adopts high efficient pressurizing air cylinder, the maximum pressure can reach 5T, which compared with the oil pressure cylinder has faster and more environmental friendly advantages.
ML400 is widely used in productions which use original papers or aluminum foils as raw materials. Different specifications can be produced by changing the mould, round or square plates, etc.
Technical Parameter:
Model:ML400
Diameter of Paper Dish:4-11inch (mould replacement)
Capacity:50-70Pcs/min (one working station)
Power Source:220V 50HZ
Total Power:3KW
weight:600Kg
Dimension:(L*W*H)1430*1600*1900mm
Raw Material:100-800g/m2(original paper, white paperboard, white cardboard, aluminum foil or others)
Air Source: Working pressure0.8Mpa Working air volume 1.5m3/min
Main technical parameters of cylinder:
mpt-80-150-5t-15
Air flow: 1.5 m3/min
Air pressure: Mpa 0.5-0.8
Cylinder stroke: 150 mm
Other notes: we can customize paper plate machines with different specifications according to the customer’s requests
