Product Description:

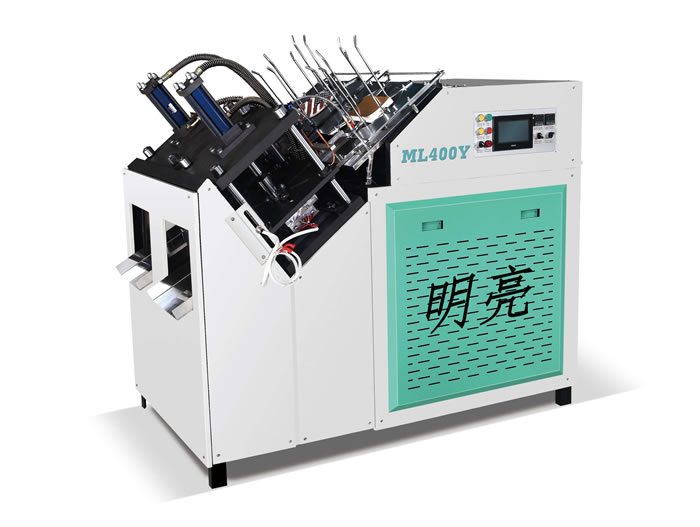

ML400Y High Speed Paper Dish (Plate) Foring Machine is invented independently and meets the needs of the maket. It is pneumatic automatic paper dish forming machine with owned unique illtellectual property right, which has functions as automatic paper feeding, forming, dish ejecting, temperature constant controlling etc., so ML400Y is the ideal equipment to produce various specifications of paper plates,such as, circular paper plates, square shaped paper plates and other shaped plates .
Compared with traditional automatic paper plate machine, ZDJ-ML400Y combines pneumatic principle with hydraulic machine, and has higher production speed, more stable performance, safe operation, more humanized structure design , etc.
Technical Parameter:
Model: ML400Y
Diameter of Paper Dish: 4-11inch (mould replacement)
Capacity: 55-75Pcs/min (one working station)
Power Source: 380V 50HZ
Total Power: 4KW
weight: 700Kg
Dimension: (L*W*H)1800*1200*1600mm
Raw Material: 180-1000g/m2(original paper, white paperboard, white cardboard, aluminum foil or others)
Air Source: Working pressure0.5Mpa Working air volume 0.5m3/min
Main technical parameters of cylinder:
MPT-63-125-3T
Oil cylinder stroke: 125mm
Other notes: we can customize paper plate machines with different specifications according to the customer’s requests
